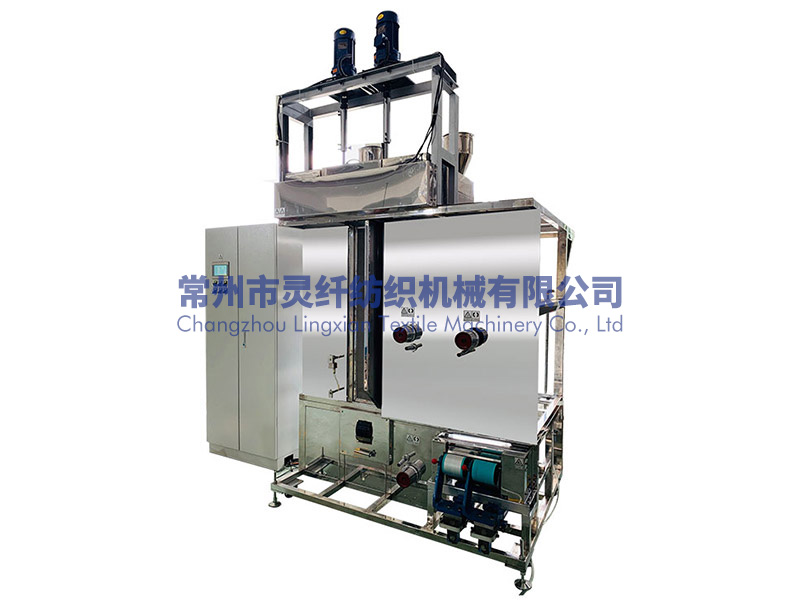

双组份FDY实验机





一、技术说明:

本套试验线是根据用户的要求设计制造的小型双组份复合FDY纺丝试验机。用于涤纶、锦纶、丙纶或添加功能母粒等用于熔融复合纺丝,牵伸、卷绕制成圆柱形筒子的长丝。双组份结构有中空结构、皮芯结构、菊瓣结构、并列结构、海岛结构。机也可单组份纺丝。本机适用于教学或打样以及开发品种等。本机是化纤厂及科研院所理想的纺丝试验机。



 二、主要技术参


设备名称

数量

1、钢平台

1台

2、密封料斗

2套

3、螺杆挤出机A

1台

4、A螺杆测量头

1个

5、螺杆挤出机B

1台

6、B螺杆测量头

1个

7、双组份复合纺丝箱

1套

8、计量泵

2台

9、计量泵传动装置

2台

10、复合组件壳(皮芯复合喷丝板

4套(2块)

11、单组份组件壳(单组份喷丝板)

4套(2块)

12、徐冷套

1套

13、侧吹风装置

1个

14、风机

1台

13、侧吹风油嘴上油

1套

14、油轮上油

1套

15、热辊

3套

16、被动分丝转子

3套

17、导丝钩

2个

18、卷绕头

1套

19、电控系统

1套

20、高速吸枪

1把

21、组件工作台

1台

22、随机配件和工具包

1套


Double component FDY spinning pilot machine



1. Summary

This set of test line is designed and manufactured according to the requirements of users. It is a small two component composite FDY spinning tester. It is used for polyester, polyamide, polypropylene or adding functional masterbatch for melt composite spinning, drawing and winding into bobbin. There are hollow structure, Skin corn structure, Petal structure, coordinates structure, island structure for double component filament, or this machine is also can be used for producing single component filament. This machine is suitable for teaching or proofing and developing varieties. It is an ideal spinning testing machine for chemical fiber factories and scientific research institutes.

2. Machine specification

NameQuantity
1.Steel platform1 set
2.Sealed hopper2 sets
3.Screw extruder A1 set
4.A Measure head1 set
5.Screw extruder B1 set
6.B Measure head1 set
7.Two component composite spinning box1 set
8.Metering pump2 sets
9.Metering pump drive device2 sets
10.Two component composite Spin pack2 sets
11. Single spin pack2 sets
12. Slow cooling ring1 set
13.Lateral blower1 set
14.Fan1 set
13.Oil nuzzle finish applicator1 set
14.Oil wheel finish applicator1 set
15.Hot roller3 sets
16.Separator roller3 sets
17.Guide hooker2 sets
18.Winder1 set
19.Electric control system1 set
20.Suction gun1 set
21.Spin pack desk1 set
22.Attached accessories and kits1 set
